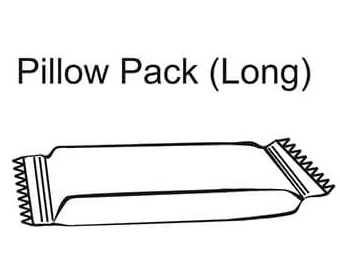

BFK2000B CUT & WRAP MACHINE IN PILLOW PACK
Short Description:
BFK2000B cut & wrap machine in pillow pack is suitable for soft milk candies, toffees, chews and gum products. BFK2000A is equipped with 5-axis servo motors, 2 pieces of converter motors, ELAU motion controller and HMI system are employed
● Independent servo drive for shaping device
● Servo drive for Feeding chain and rotary knife
● Servo drive for longitudinal seal
● Servo drive for horizontal seal
● Servo drive for a pair of feeding rollers
● Pneumatic core locking
● Assistance device for film run
● Centralized lubrication
Output
● Max. 1300 products/min
Product measurements
● Length: 10-60mm (can be customized)
● Width: 10-25mm
● Thickness: 3-15mm
Connected load
● 9KW
Utilities
● Compressed air consumption: 4L/min
● Compressed air pressure: 0.4-0.6Mpa
Wrapping materials
● Heat sealable foil
● PP film
Material dimensions
● Reel diameter: 330mm
● Reel width: 60-100mm
● Core diameter: 76mm
Machine measurements
● Length: 2900mm
● Width: 1070mm
● Height: 1670mm
Machine weight
● 2500kg
Depending on the product, it can be combined with UJB mixer, TRCJ extruder, ULD cooling tunnel for different candy production lines (chewing gum, bubble gum and Sugus)
