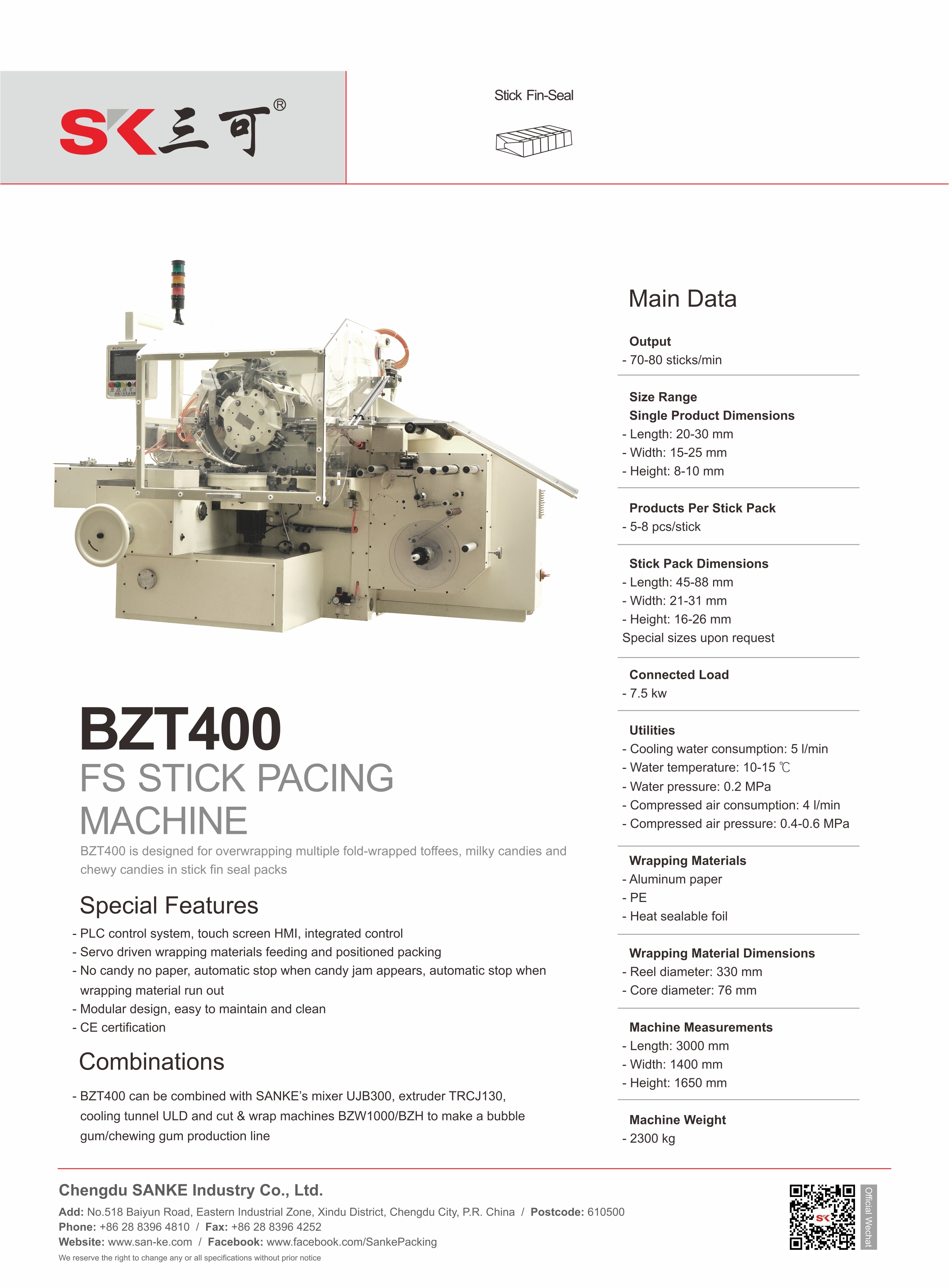

BZT400 FS STICK PACKING MACHINE
Short Description:
BZT400 is designed for overwrapping multiple fold-wrapped toffees, milky candies and chewy candies in stick fin seal packs
Special features
PLC control system, touch screen HMI, integrated control
Servo driven wrapping materials feeding and positioned packing
No candy no paper, automatic stop when candy jam appears, automatic stop when wrapping material run out
Modular design, easy to maintain and clean
CE certification
Output
70-80 sticks/min
Size Range
Single Product Dimensions
Length: 20-30mm
Width: 15-25mm
Height: 8-10 mm
Products Per Stick Pack
5-8 pcs/stick
Stick Pack Dimensions
Length: 45-88mm
Width: 21-31mm
Height: 16-26mm
Special sizes upon request
Connected Load
5 kw
Utilities
Cooling water consumption: 5 l/min
Water temperature: 10-15℃
Water pressure: 0.2MPa
Compressed air consumption: 4 l/
Compressed air pressure: 0.4-0.6MPa
Wrapping Materials
Aluminum paper
PE
Heat sealable foil
Wrapping Material Dimensions
Reel diameter:330mm
Core diameter: 76mm
Machine Measurements
Length: 3000mm
Width: 1400mm
Height: 1650mm
Machine Weight
2300kg
BZT400 can be combined with SANKE’smixer UJB300, extruder TRCJ130, cooling tunnel ULD and cut &wrap machines BZW1000/BZH to make a bubble gum/chewing gum production line
