SK-1000-I STICK CHEWING GUM WRAPPING MACHINE

SK-1000-I STICK CHEWING GUM WRAPPING MACHINE

Short Description:

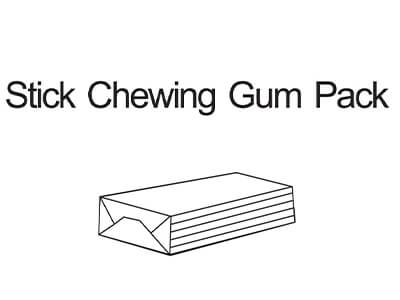

SK-1000-I is a specially designed wrapping machine for chewing gum stick packs. The standard version of SK1000-I is composed by automatic cutting part and automatic wrapping part. Well-formed chewing gum sheets were cut and fed to wrapping part for inner wrapping, middle wrapping and 5 pieces stick packing


Product Detail

Main data

Combinations

● Programmable controller, converter speed control, HMI, integrated control

● Middle paper packing and outer paper packing equipped position cutting device to achieve position packaging

● Central lubrication

● Safety sensors guarantee operator's safe

● Module design, easy maintenance and clean

● CE safety authorized


  • Previous:
  • Next:

  • Output

    ● 650-700products/min

    ● 130-140sticks/min

    Product measurements

    ● Length: 71mm

    ● Width: 19mm

    ● Thickness: 1.8mm

    Connected load

    ● 6KW

    Wrapping material measurements

    ● Inner reel: reel diameter: 340mm, width: 92mm, core diameter: 76±0.5mm

    ● Middle reel: reel diameter: 400mm, width: 68mm, core diameter: 152±0.5mm, distance between 2 photo marks: 52±0.2mm

    ● Outer reel: reel diameter: 350mm, width: 94mm, core diameter: 76±0.5mm, distance between 2 photo marks: 78±0.2mm

    Machine measurements

    ● Length: 5000mm

    ● Width: 2000mm

    ● Height: 2000mm

    Machine weight

    ● 2600kg

    Depending on the product, it can be combined with UJB mixer, TRCJ extruder, ULD cooling tunnel to be a production line for stick chewing gum
